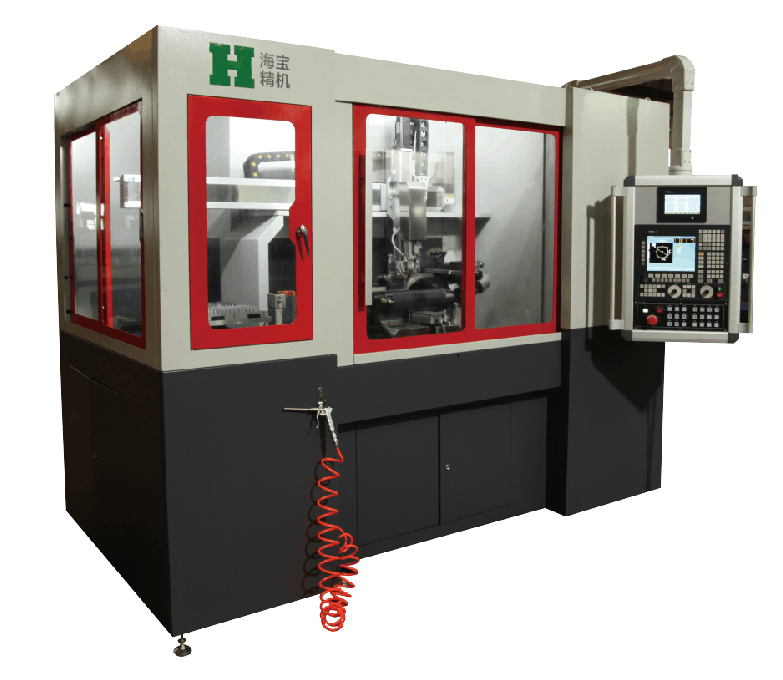

name

parameter

unit

Grinding spindle unit

Grinding wheel diameter

350

mm

Maximum spindle speed

1800

rpm/min

Spindle power

7.5

KW

Feed unit

X axis

stroke

60

mm

Maximum speed

70

mm/s

Resolution

0.0001

mm

B axis

stroke

。

Maximum speed

500

。/s

Resolution

0.0001

。

C axis

stroke

-30/+35

。

Maximum speed

90

。/s

Resolution

0.0001

。

Correction system

Correcting wheel diameter

80

mm

Dressing wheel rotation speed

150

rpm/min

Swing frequency

2

HZ

Compensation axis resolution

1

um

Robot system

Number of trays

2

pcs

Range of lateral motion

1200

mm

Vertical motion range

260

mm

Movement range of tray

500

mm

Process parameters

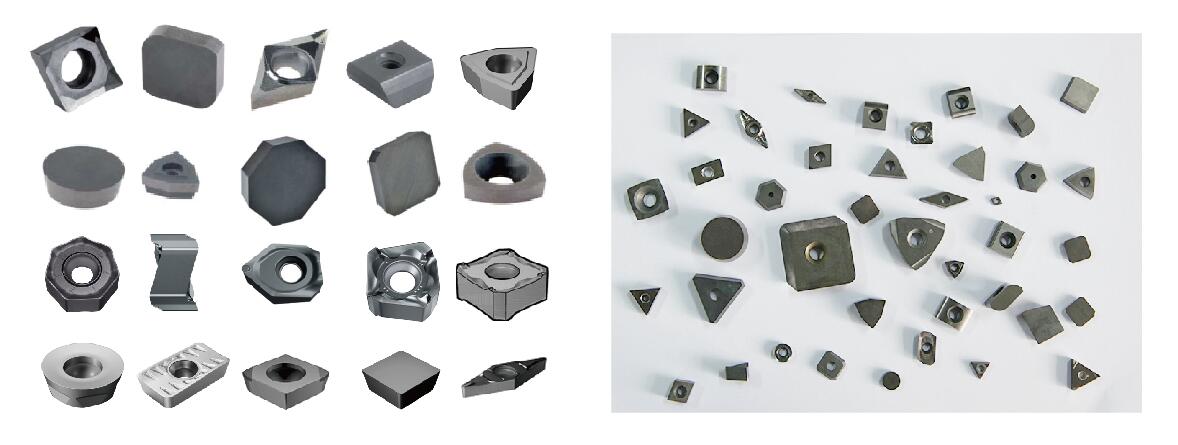

Machinable inscribed circle range

Φ3/32

mm

Can hold the blade thickness

3/25

mm

Swing diameter

45

mm

Machine parameters

Dimensions (length × width × height)

2650×2070×1510

mm

Maximum power

20

KVA

Hydraulic outlet pressure

4

Mbar

Compressed air

0.4

Mbar

Machine weight

About 5

T
